Premium Connection

Short Description:

1.International Well-known Premium Connections Please contact to communicate further in details 2.EZGOTM-Premium Connections Benefits of EZGO™ With over a million feet of EZGO™ Connections in wells in the USA and Canada, drilling and completions teams know that when it comes to EZGO™ Connections, the list of competitive advantages is endless. From being customizable and easy to install, to being compatible with common threads and outperforming similar products, EZGO™ Connections are the ideal...


Product Detail

Product Tags

1.International Well-known Premium Connections

Please contact to communicate further in details

2.EZGOTM-Premium Connections

Benefits of EZGO™

With over a million feet of EZGO™ Connections in wells in the USA and Canada, drilling and completions teams know that when it comes to EZGO™ Connections, the list of competitive advantages is endless. From being customizable and easy to install, to being compatible with common threads and outperforming similar products, EZGO™ Connections are the ideal product for any company looking to drill faster, operate more efficiently, and run safely.

Outperforms other connections

The superior design of EZGO™ makes it capable of outperforming competitors’ connections in multiple areas. By using connections which are equipped to handle higher levels of operational and yield torque, pressure, compression, and tension, our clients are confident knowing that EZGO™ Connections are reliable and will not fail.

Intro to EZGO™ Products

With a modifiable design that’s easy to install, EZGO™ Premium and Semi-Premium Connections allow you to maximize productivity and outperform the competition in the most challenging drilling environments. Our innovative design allows EZGO™ connections to outperform our competitors’ connections in terms of operational and yield torque, tension, compression and internal pressure efficiency. EZGO™ Connections also have the versatility to perform in all oil and gas applications, from deep, vertical wells to horizontal to thermal (SAGD and CSS) wells. These qualities allow EZGO™ to produce optimized solutions that deliver higher productivity, more value, and makes installation easier for our clients.

EZGO™ Application Guide

Intermediate Casing
EZGO™ HT EZGO™ GT EZGO™ HTGT EZGO™ FJ3 EZGO™ FJ4
Production Casing Tie-Backs
EZGO™ HT EZGO™ GT EZGO™ HTGT EZGO™ FJ3 EZGO™ FJ4
Liner
EZGO™ HT EZGO™ GT EZGO™ HTGT EZGO™ FJ3 EZGO™ FJ4
Workstring
EZGO™ HT EZGO™ EZ-6/8
Production Tubing
EZGO™ THT EZGO™ TGT EZGO™ TFJ EZGO™ THTGT

EZGO™ HT – High Torque. Adaptability with API Buttress and with HTGT
EZGO™ GT – Gas Tight
EZGO™ HTGT – High Torque / Gas Tight. Adaptability with API Buttress and with HT
EZGO™ FJ3 – Flush Joint w/ 3 Seals
EZGO™ FJ4 – Flush Joint w/ 4 Seals
EZGO™ EZ-6/8 – Two Step Integral Connection

①EZGO™ HT

Features

• Threaded & Coupled Connection
• Compatible with API Buttress Accessories
• Flush ID
• Shorter Coupling Length
• Option: Solid Torque Stop in Coupling
• Low Stress Thread Design
• Special Clearance Option
• Low Galling Risk
• Pin-to-Pin Contact Design

Steel Pipe3553

②EZGO™ GT

Features

• Gas Tight, Metal to Metal Seal
• 2 Metal Seals with Solid Torque Stop
• Threaded & Coupled Connection
• Flush ID
• Special Clearance Option

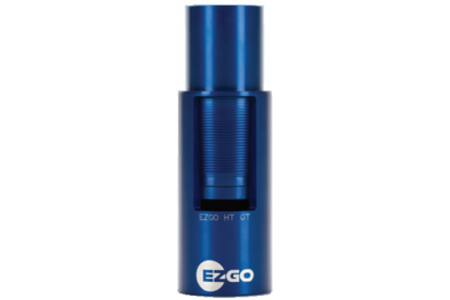

EZGO™ HTGT

 Features

• Gas Tight, Metal to Metal Seal
• Compatible with API Buttress Accessories
• Flush ID
• Loss Stress Thread Design
• Low Galling Risk
• Special Clearance Option
• Option for Solid Torque Stop in Coupling
• Shorter Coupling Length
• Available in Pin-to-Pin Contact
• Available as T-HTGT (Premium Tubing Connection)

Steel Pipe3553

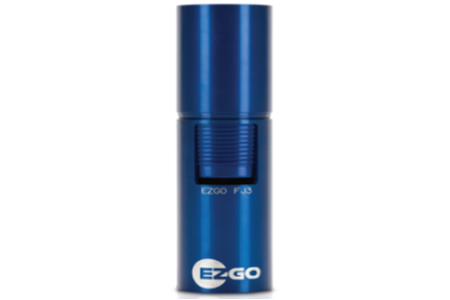

④EZGO™ FJ3

Features

• Metal to Metal Seal Design
• 3 Pressure Seals
• Full Contact External Seal Torque Stop
• True Flush OD
• Streamlined ID
• Negative Load Flank

⑤EZGO™ FJ4

Features

• Metal to Metal Seal Design
• Easy Field Running
• Full Contact External Seal Torque Stop
• True Flush OD
• Streamlined ID

⑥EZGO™ EU6 & EU8

Features

• Two Step Integral Connection
• Available in Sizes From 2 3/8” to 5 1/2”
• Gas Tight, Metal to Metal Seal
• Special Clearance Option
• Flush ID
• Low Stress Thread Design

Steel Pipe3553
